Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter

  • 1
  • 2
  • 3

Accuracy Class : 2.5

Measuring Range : 0-50V

Model Number : TP-96 DCV

Brand Name : ymiho

Place of Origin : Wuxi, China

Dimensions : 96x96mm

Display Type : Analog Only

Operating Temperature : -20~50℃

HS Code : 9028309000

Outer Carton Size : 54x38x43cm

Standard Package : 100pcs/CTN

N.W. : 21KG

G.W. : 23KG

MOQ : 100

Price : $3.80-5.40 / piece

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

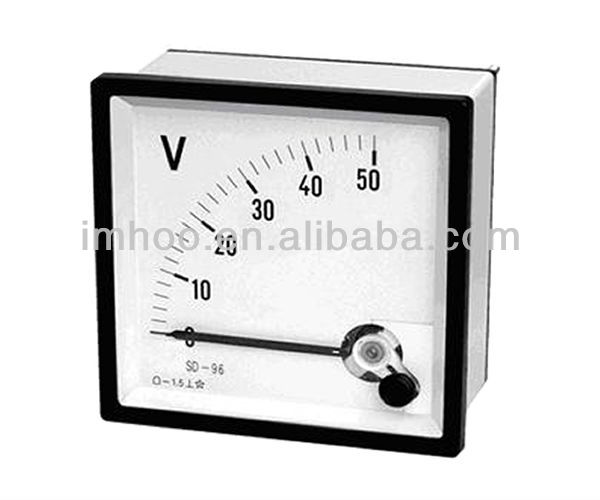

Voltmeter Analog Panel Mount Meter DC 96×96 0-50V
Professional analog panel mount voltmeter designed for precise DC voltage measurement with a range of 0-50V. Features a compact 96×96mm form factor suitable for industrial control panels and electrical systems.
Product Construction
  • Case Material: Non-combustible ABS plastic for external case with PPO plastic base
  • Alternative Option: Non-combustible PC plastic material available for both case and base
  • Temperature Resistance: Maintains structural integrity at 70°C and 120°C respectively
Customization Available: IMHOO supports OEM services including custom ranges, changeable scales, waterproof designs, and other specialized requirements.
Technical Specifications
TP Series Ammeter Specifications
Type AC Ranges DC Ranges
mA 100mA, 150mA, 200mA, 400mA, 500mA 100mA, 150mA, 200mA, 400mA, 500mA
A 1A to 100A (multiple ranges) 1A to 100A (multiple ranges)
External CT (AC) 10/1A to 1000/1A (customizable) 50mV, 60mV, 75mV shunts
External Shunt (DC) 10/5A to 1000/5A (customizable) 10A to 3000A (multiple ranges)
TP Series Voltmeter Specifications
Type AC Voltage Ranges DC Voltage Ranges
Voltage 10V to 600V (multiple ranges) 10V to 600V (multiple ranges)
Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter
Physical Dimensions
Model Case Dimension (mm) Panel Cutout (mm) Additional Dimensions
TP-96 96.5 × 96.5 91 × 91 Height: 69.4mm
TP-72 71.8 × 71.8 67.5 × 67.5 Height: 69.4mm
TP-48 48.3 × 48.3 44.2 × 44.2 Height: 69.4mm
Model Selection Guide
Model Moving Coil Moving Iron Compatibility
TP-96 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
TP-72 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
TP-48 DC Ammeter & Voltmeter AC Voltmeter AC/DC compatible
Voltmeter Analog Panel Mount Meter DC 96*96 0-50V Working Principle of Digital Voltmeter
