390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range

Product Categories
Wuxi Imhoo Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range

Model Number : 390D

Brand Name : IMHOO

Place of Origin : Jiangsu, China

MOQ : 1 piece

Price : $13.20-15 / piece

Measuring Current Range : 0.05~10A

Measuring Voltage Range : 10~1000V

Dimensions : 158*105*40mm

Measuring Capacitance Range : 100pF~25

Measuring Inductance Range : null

Measuring Resistance Range : 1~10K

Operating Temperature : 0~40℃

color : orange

Carton Size : 53x38x32cm

G.W. : 19kg

N.W. : 18kg

Standard Packing : 32pcs/CTN

HS Code : 90303200

Contact Now

390D Advanced Sanwa Multimeter
Professional digital multimeter with comprehensive testing capabilities for industrial and electrical applications.
Key Features
  • Strong magnet pivot with jewel movement built-in
  • 25 test ranges across 11 working functions
  • Advanced overload protection with two fast-acting fuses (0.5A & 10A)
  • Adjustable back tilt stand with hook-up hole
  • Compact soft protective holster included
  • High input impedance: 10 MΩ on all ACV & DCV ranges
  • Auto power-off after 5 minutes with special touch-button restore
Technical Specifications
Function Range Accuracy
AC Voltage 10/50/250/500V(1000)Vrms & Vp-p ±4.0% F.S.
DC Voltage 0.05/0.5/2.5/10/50/250/500V(1000V) ±3.0% F.S.
DC Current 0.025/0.25/2.5/25/250mA, 10A ±3.0% F.S.
Resistance X1, X10(C3), X1K(C1), X10K, X100K ±4.0% of Arc.
Frequency 0.25K/2.5K/25K HZ ±3.0% F.S.
Capacitance 100pF~0.025uF/2.5uF/25uF (±3.0% F.S.) With CT-1 tool kit
Additional Testing Capabilities
  • Decibels test: -20~ +62dB with external 0.047uF/400V polyester capacitor
  • Continuity test with audible buzzer
  • Leakage current and diode testing
  • Transistor testing via test leads or optional Hfe socket
Power & Safety
  • Power supply: 6F22 9V (1pc), AA size 1.5V (2pcs)
  • Over voltage category: CAT III 500V, CAT II 1000V
  • Dimensions: 160×105×40mm
  • Weight: 340g approximately
390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range

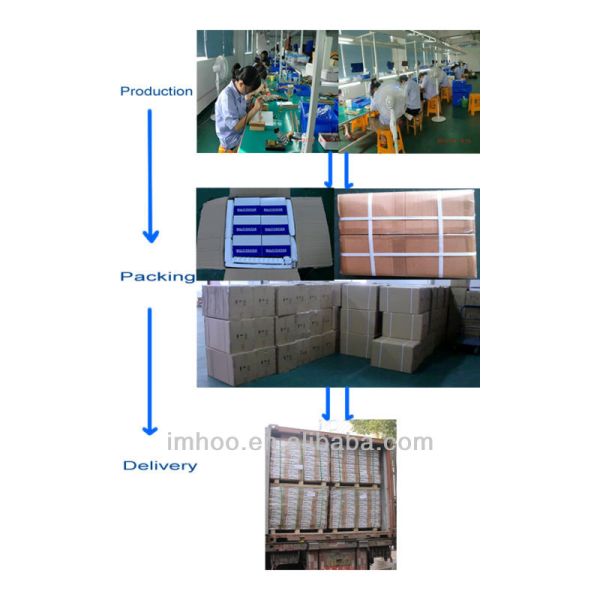

Packaging & Shipping
390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range
390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range
390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range
Our Services
  • High quality products at competitive prices
  • Integrity and on-time delivery commitment
  • Quality assurance with replacement policy for any issues
  • OEM manufacturing services available
  • Custom product research and development based on customer requirements
Company Information
390D Advanced Sanwa Multimeter Analog Multimeter 0.05-10A Measuring Current Range
Frequently Asked Questions
Are you a factory or trading company?
We are a factory
Where is your factory located? How can I visit there?
Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour train from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us!
How can I get some samples?
We are honored to offer you samples.
How does your factory do regarding quality control?
Quality is priority. IMHOO people always attach great importance to quality controlling from the very beginning to the very end.
