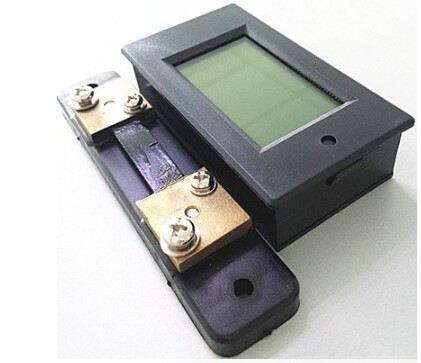

DC Current 0-100A Cheap Digital Energy Meters Price

Name: DC Current 0100A Cheap Digital Energy Meters Price
Brand: ymiho
Price: 6.90 USD

Wholesale DC Current 0-100A Cheap Digital Energy Meters Price from china suppliers

Accuracy Class : 1.0

Measuring Energy Range : 0-9999KWh

Phase : Single Phase

Model Number : PZEM-051

Brand Name : ymiho

Place of Origin : Wuxi, China

Dimensions : 89.6x49.6x24.4mm

Display Type : Digital Only

Operating Temperature : 10~65

Output Voltage : DC6.5~100V

Test power : 0-2KW

Test current : 0-50A

Test energy : 0-9999KWh

Test voltage : 6.5~100V DC

Rated power : 50A/2000W

Work frequency : 45~65HZ

keyword : digital energy meters price

Accuracy : 1%

OEM : YES

HS code : 8504902000

MOQ : 100

Price : $6.90-8.50 / piece

Packaging Details : carton packaging

Delivery Time : 15 work days

Contact Now

DC Current 0-100A Digital Energy Meter

Professional digital energy meter designed for precise measurement of DC electrical parameters with multiple current range options.

DC Current 0-100A Cheap Digital Energy Meters Price

Current Range Options

0-20A: With internal shunt - no external shunt connection required
0-50A: Requires external 50A/75mV shunt connection
0-100A: Requires external 100A/75mV shunt connection

Note: When using external shunt, meter must be set to corresponding range (50A or 100A). Factory default setting is 100A.

Range Setting Instructions

For 50A Range: Long press button until indicator appears, release, then short press.

For 100A Range: Long press button until indicator appears, release, then short press.

Wiring Diagrams

Key Functions

Electrical parameter measurement (voltage, current, active power, energy)
Overload alarm with flashing backlight and power indicators
Programmable power alarm preset
Energy counter reset button
Energy data retention during power loss
Large LCD screen with simultaneous display of all parameters
Backlit display for low-light conditions

Display Specifications

Parameter	Range	Display Format
Power	0-2KW	<1KW: 0.0-999.9W >1KW: 1000-2000W
Energy	0-9999KWh	≤10KWh: 0-9999Wh ≥10KWh: 10-9999KWh
Voltage	6.5-100V	6.5-99.99V
Current	0-50A	0.00-50A

Technical Specifications

Specification	Value
Operating Voltage	6.5-100VDC
Measurement Voltage	6.5-100VDC
Measurement Current	0-20A / 0-50A / 0-100A
Rated Power	50A/2KW
Accuracy Class	1.0

Dimensions
